SKU: ELT08B

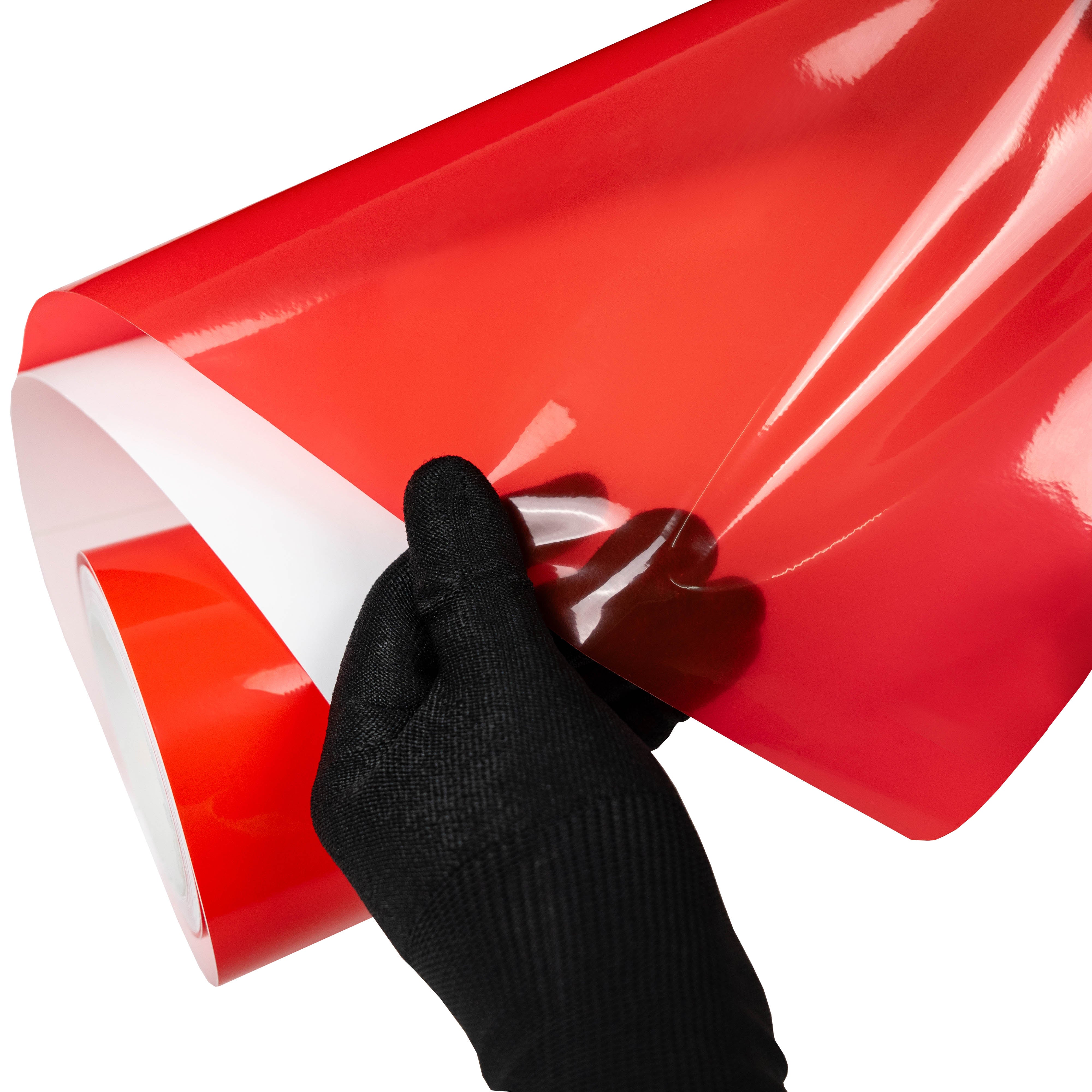

Red Headlight Film With Air Channel Paper Liner

Price
£45

Width: 1.3ft(40cm)

Length: 32ft

How Much Vinyl Is Need To Wrap Different Type Of Vehicles

How Much Vinyl Is Need To Wrap Different Type Of Vehicles

In order to determine the amount of vinyl you need to wrap your car, you can use the following rough estimates based on the size of your vehicle:

  • Compact cars: typically require 15-17 meters
  • Mid-size cars require 18-20 meters
  • Full-size cars, small SUVs, and small vans need 20-23 meters

By considering the size of your vehicle, you can use this list as a reference to gauge approximately how much vinyl you will need. It is important to note that these estimates are rough and the actual amount of vinyl needed may vary depending on the specific dimensions and features of your car.

  • Micro: 8 meters
  • Mini: 13 meters
  • Coupe: 14-15 meters
  • Sedan: 16-18 meters
  • Hatchback: 17-19 meters
  • Sports car: 17-18 meters
  • Wagon: 19-22 meters
  • SUV and 4WD: 17-22 meters
  • Pick-up: 21-22 meters
  • Van: 23 meters
How Much Vinyl Is Need To Wrap Different Type Of Vehicles
How Much Vinyl Is Need To Wrap Different Type Of Vehicles
How Much Vinyl Is Need To Wrap Different Type Of Vehicles
    In stock and ready for shipping
    American Express
    Apple Pay
    Google Pay
    Mastercard
    PayPal
    Shop Pay
    Union Pay
    Visa
    Red Headlight Film

    Red Headlight Film With Air Channel Paper Liner

    Width: 1.3ft(40cm) Length: 32ft

    Price
    £45

    Product Description

    There’s something completely unique and remarkable about the color red. It commands attention, carries weight, and never plays it safe. That same bold energy comes to life in this Red Headlight Film with Air Channel Paper Liner by Vinyl Frog. It is more than just a color shift; it’s a transformation in the whole attitude and the overall appearance of your ride, making it more aggressive and attention-grabbing. It’s the look embraced by confident drivers who treat the road like their stage. From the moment the headlight film is applied, the entire front end of your car takes on a more daring tone with this deep, strong tint.

    Our Red Headlight Tint is a durable film that is thin and flexible. It easily takes on the shape of your car’s headlight, no matter how complex it is. You do not have to prepare soapy water for its application. It is applied dry. Simply remove the liner and place the film on the surface of your headlight using a squeegee to smooth it out. The integrated channels in its solvent-based, acrylic adhesive allow air to escape as you apply it, helping you avoid bubbles, folds, or frustration. You just have to cut, install, and swipe with the squeegee towards the edges, and you will get a flawless finish in no time. It’s as simple as that.

    Once applied, this amazing Red Tint clings tightly to the lens. You will get no edge lift, no peeling, and certainly no regrets. And while the look screams motorsport, the performance quietly works behind the scenes to shield your lights from road debris, sun exposure, and minor abrasions.  When it comes to maintenance, simplicity rules. Our Red Headlight Film is easy to wipe clean, rain beads off effortlessly, and it holds up well under pressure. It also resists cracking, yellowing, and fading, so your look stays fresh for a long time. Add it to the cart now and give your car that pulse of color that sets it apart.

    Features And Specifications

    • Color: Red.
    • Sizes available: 2ft, 4ft, 8ft, 16ft, and 32ft.
    • Packaging: Roll.
    • Application Method: Dry.
    • Lifetime: 1 year (Based on vertical exposure).
    • Type: Automotive, architectural, marketing applications, indoor & outdoor.
    • Durable, long-lasting, and high-performance.
    • Eco-friendly, high-grade tint.
    • Water and weatherproof.
    • Heat, UV, and scratch-resistant.
    • Easy to apply and maintain.
    • Equipped with a top protective film.
    • Features heat-activated self-healing technology.
    • Acrylic-based, repositionable ultra-clear adhesive.
    • Easy to reposition and slide.

    Proper Installation

    If the headlight surface is clean and undamaged before installation, the wrap adheres evenly and removes smoothly.

    Proper Removal Technique

    Using gentle heat (like a heat gun or hairdryer) softens the adhesive, making it easier to peel without pulling or tearing the headlight’s factory coating.

    Warning

    If the headlights are already oxidized, yellowed, or have weak factory coating, peeling the wrap can pull off clear coat or cause flaking.

    Video

    Physical Properties

    Classification Unit Spec Remark
    Thickness Top protected film um 25±5 PE
    Acrylic Adhesive um 20±2

    Solvent-based

    Face Film um 100±5 /

    Release liner

    um 180±2%  Paper Liner
    Surface

    -

    - Glossy & Matte /
    Width

    -

    cm 30/40±0.01% 1ft/1.3ft
    Length

    -

    m 10±1% 32ft


    Physical Performance

    Features Test Method Results
    Gloss (60°) GB 8807 92.3
    VLT / 87%
    Self-healing Layer Elongation at Break GB/T 1040.1 112
    Face Film Elongation at Break GB/T 1040.1 309.5
    Tear Strength GB/T529 92.7 KN/m
    Tensile Strength GB/T 1040.1 21.6 Mpa
    100% Modulus GB/T 1040.1 9.1 Mpa
    Anti-yellowing / ΔE< 1.2
    Light Transmission >40% 43%
    Adhesive residue / <3%
    Release force (N/25mm) paste on steel board, 90° 26℃ and 60%, GB2792 0.16
    Initial tack (g/25mm) under 24℃ and 26%, GB31125-2014 860
    Peel Strength (N/25mm) 180° 15
    Holding power(h) paste on steel board, hang on by 25mm*25mm*1kg weight under 29℃ and 55%, GB/T4851-1998 No peel off within 48 hours
    Aging Test  65℃ and 7 days No adhesive residue under 20 times wrapping
    Application Temperature / +20℃ to +30℃
    Service Temperature / -50℃ to +110℃
    Recommended Shelf Life 72°F (22°C) and 50% RH 1 year
    Durability / 1 year
    Time limits Must use it within 3 months after receiving the wrap film 3 months



    Shelf Life

    1 year from date of purchase when stored at 50°F to 80°F (15°C – 25°C) and 45% to 50% relative humidity. Optimum recommended storage conditions are 72°F (22°C) and 50% relative humidity.

    Important Notice

    The physical properties of the product detailed in this document are based on tests that we believe to be reliable. They are intended only as a source of information and are given without guarantee. They do not constitute a warranty. Purchasers should independently assess the suitability of this material for their specific use prior to application.

    Warranty, Limited Remedy, and Disclaimer

    Unless an additional warranty is specifically stated on the applicable product packaging or literature, VinylFrog warrants that each product meets the applicable specifications at the time of shipment. We make no other warranties or conditions, express or implied, including but not limited to any implied warranty or condition of merchantability or fitness for a particular purpose, or any implied warranty or condition arising out of a course of dealing, custom, or usage of trade. If the VinylFrog product does not conform to this warranty, then based on our discretion, the sole and exclusive remedy is either the replacement of the product or a refund of the purchase price.

    Limitation of Liability

    Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from its product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.

    Durability

    The durability of the product is based on exposure conditions in South China. Actual performance life will depend on substrate preparation, exposure conditions, and maintenance of the product. For instance, in areas with excessively high temperature, industrial pollution, or high altitude, exterior performance will decrease.

    Recommendations

    Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, sprayer, towel, and installation liquid
    Application method: Standard methods for Car Light Protection Film. Do not overstretch and overheat. Post heating is necessary.
    Post-heating temperature: 110°C flat surfaces, 130°C curves and overlaps.
    Aftercare: PH neutral. Avoid wax or solvents.
