  • Sku: HTLF02

2 in 1 Light Black & Clear Holographic Honeycomb Headlight Film Kit with Air Channel Paper Liner

$199.00 USD
 per
In stock!
Size1

View full details

2 in 1 Light Black & Clear Holographic Honeycomb Headlight Film Kit with Air Channel Paper Liner

Description

Features

  • Premium, long-lasting, and high-performance film.
  • Smooth, glossy, holographic finish.
  • Distinct honeycomb pattern.

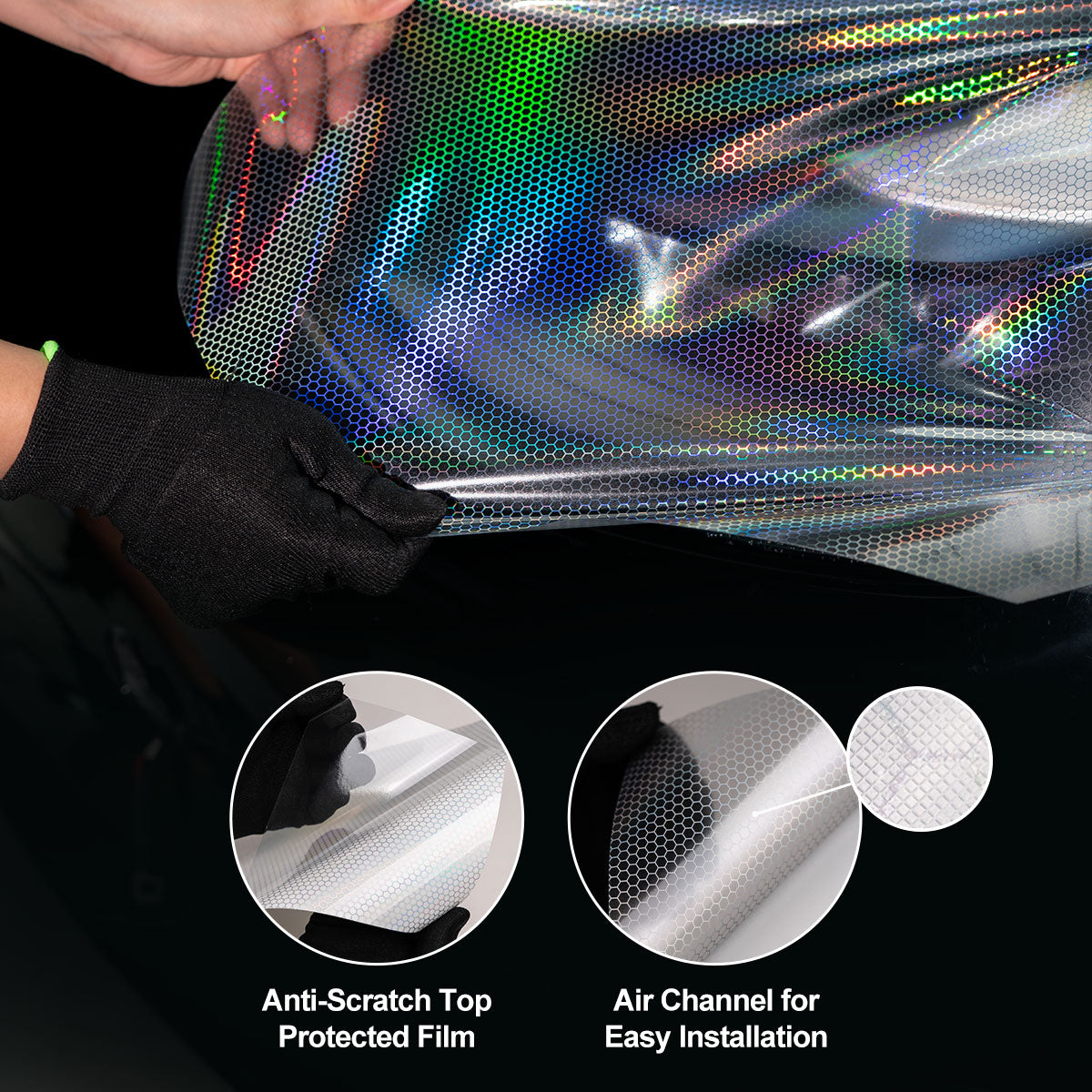

  • Equipped with air-release channels.
  • Resistant to UV, heat, stains, and scratches.
  • Eco-friendly, high-grade tint.
  • Water and weatherproof.
  • Easy to apply and maintain.
  • Equipped with a top protective film.
  • Acrylic-based, repositionable ultra-clear adhesive.
  • Easy to reposition and slide.
  • Features air channel paper liner and self-healing technology.

Structure

Composed of 4 layers: Top Protected Film, Polymeric Face Film, Acrylic Adhesive, Release Liner

Specifications

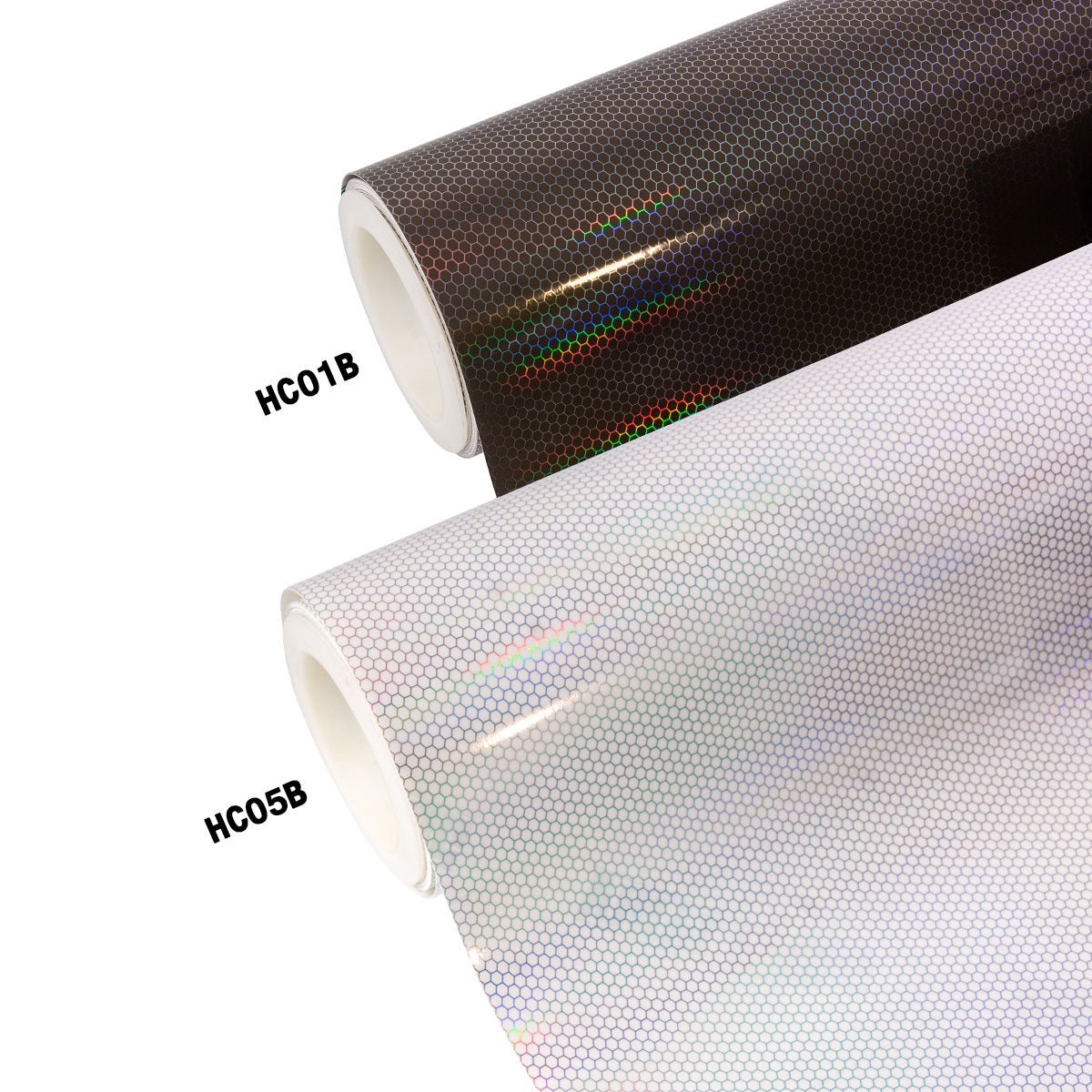

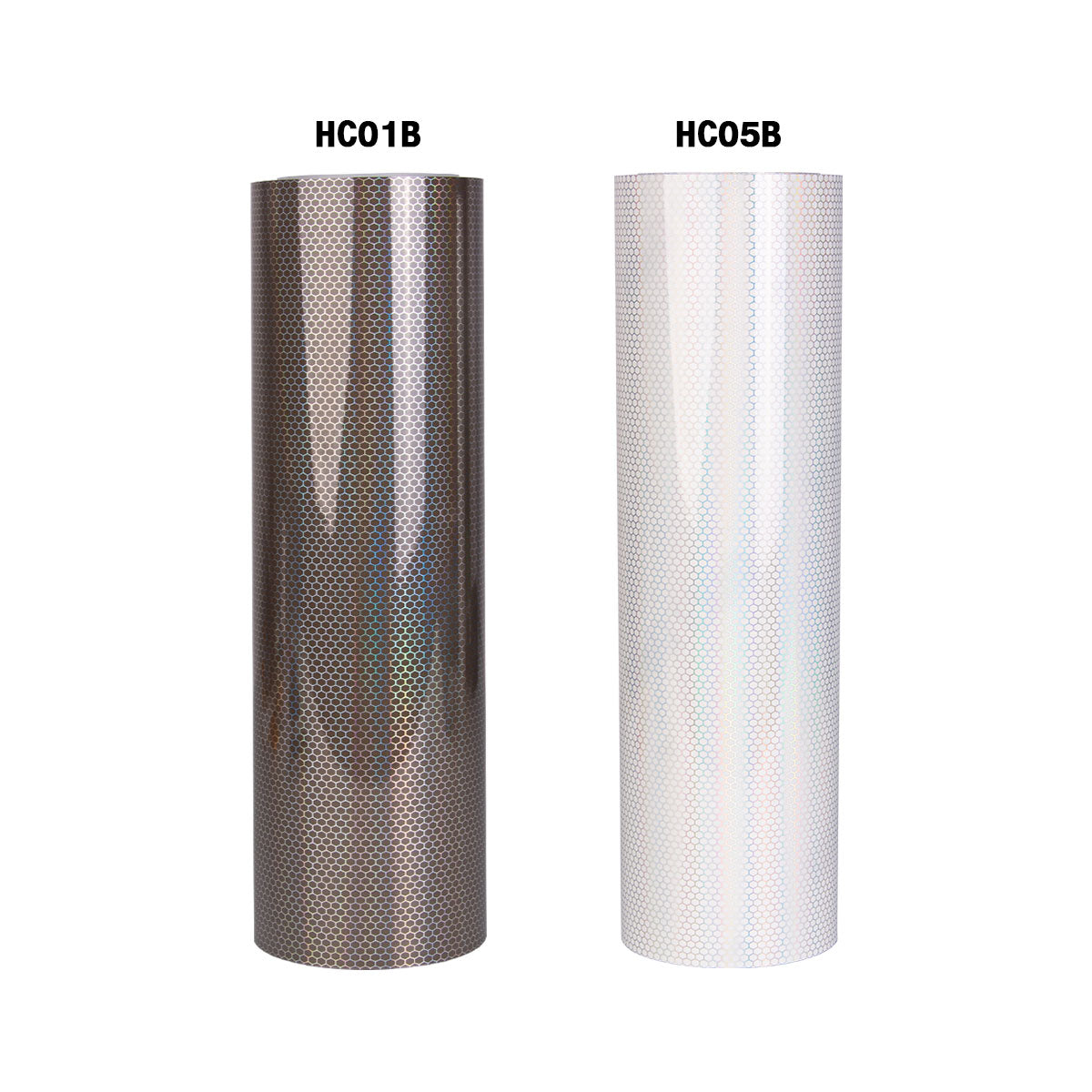

  • Set of 2 Colors: Light black, Clear/Transparent Color
  • Size: 32ft(L)x 1.3ft(W)
  • Lifetime: 2 years (Based on vertical exposure).
  • Type: Automotive, architectural, marketing applications, indoor & outdoor.
  • Pattern: Honeycomb.
  • Set Packaging: Roll.
  • Application Method: Dry application provides better results.

Video

Physical Properties

Classification Unit Spec Remark
Thickness Top protected film um 16um±5 PET
Face Film um 100um±5 /
Acrylic Adhesive um 20um±2 Solvent-based
Release liner um 180um±2% Paper Liner
Width - cm 30/40±0.01% 1.3ft
Length - m 10±1% 32ft
Surface - / Glossy /


Physical Performance

Features Test Method Results
Gloss (60°) GB 8807 92.3
VLT / 92% (Clear)
81% (Light Black)
Peel Strength
N/25mm
180° 15
Self-healing Layer Elongation at Break GB/T 1040.1 112
Face Film Elongation at Break GB/T 1040.1 309.5
Tear Strength GB/T529 92.7 KN/m
Tensile Strength GB/T 1040.1 21.6 Mpa
100% Modulus GB/T 1040.1 9.1 Mpa
Anti-yellowing / ΔE< 1.2
Adhesive residue / <3%
Release force (N/25mm) paste on steel board, 90° 26℃ and 60%, GB2792 0.16
Initial tack (g/25mm) under 24℃ and 26%, GB31125-2014 860
180° Peel Strength (N/25mm) 10 - 13 12
Holding power(h) paste on steel board, hang on by 25mm*25mm*1kg weight under 29℃ and 55%, GB/T4851-1998 48H No Peeling
Aging Test  65℃ and 7 days No adhesive residue under 20 times wrapping
Application Temperature / +20℃ to +30℃
Service Temperature / -50℃ to +110℃
Recommended Shelf Life 72°F (22°C) and 50% RH 2 year
Durability / 2 year



Shelf Life

2 years from date of purchase when stored at 50°F to 80°F (15°C – 25°C) and 45% to 50% relative humidity. The optimum recommended storage conditions are 72°F (22°C) and 50% relative humidity.
