SKU: HTLF03B

3 in 1 Headlight Film Kit (40cm) with Air Channel Paper Liner

Price
£130

Size: 32ft*1.3ft

How Much Vinyl Is Need To Wrap Different Type Of Vehicles

How Much Vinyl Is Need To Wrap Different Type Of Vehicles

In order to determine the amount of vinyl you need to wrap your car, you can use the following rough estimates based on the size of your vehicle:

  • Compact cars: typically require 15-17 meters
  • Mid-size cars require 18-20 meters
  • Full-size cars, small SUVs, and small vans need 20-23 meters

By considering the size of your vehicle, you can use this list as a reference to gauge approximately how much vinyl you will need. It is important to note that these estimates are rough and the actual amount of vinyl needed may vary depending on the specific dimensions and features of your car.

  • Micro: 8 meters
  • Mini: 13 meters
  • Coupe: 14-15 meters
  • Sedan: 16-18 meters
  • Hatchback: 17-19 meters
  • Sports car: 17-18 meters
  • Wagon: 19-22 meters
  • SUV and 4WD: 17-22 meters
  • Pick-up: 21-22 meters
  • Van: 23 meters
How Much Vinyl Is Need To Wrap Different Type Of Vehicles
How Much Vinyl Is Need To Wrap Different Type Of Vehicles
How Much Vinyl Is Need To Wrap Different Type Of Vehicles
    Size Help
    In stock and ready for shipping
    American Express
    Apple Pay
    Google Pay
    Mastercard
    PayPal
    Shop Pay
    Union Pay
    Visa

    Share this product

    Share Post Pin E-mail
    3 in 1 Headlight Film Kit (40cm) with Air Channel Paper Liner

    3 in 1 Headlight Film Kit (40cm) with Air Channel Paper Liner

    Size: 32ft*1.3ft

    £130

    Product Description

    Key Features

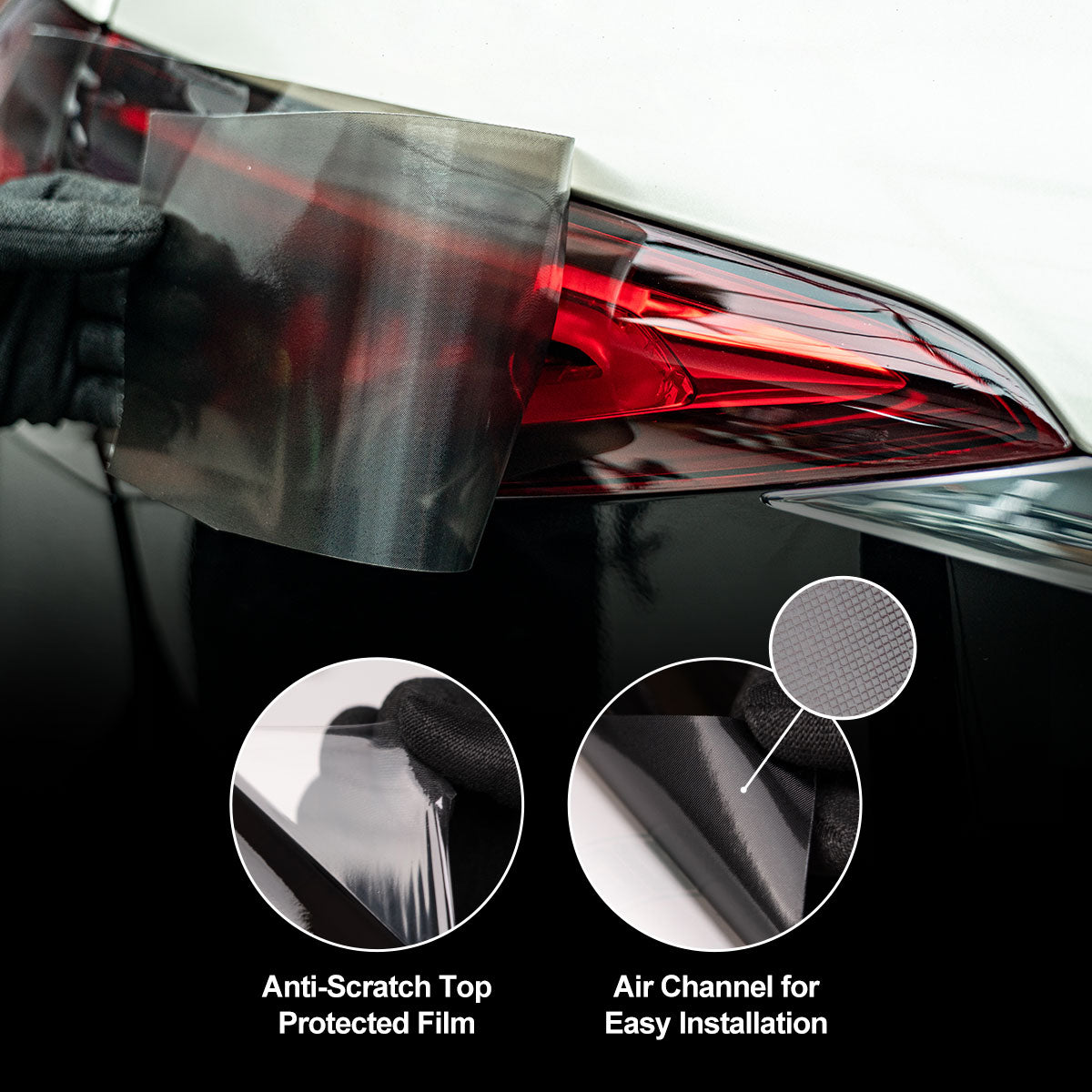

    • Air Channel for Easy Installation: Integrated air channels allow for bubble-free installation.
    • Anti-Scratch Top Protected Film: Top film layer protects against scratches and keeps the surface smooth.
    • Dry Application: No water needed; easily applied with a dry method.
    • Repositionable: Allows for multiple adjustments during installation.
    • High Clarity: Ensures high transparency for clear visibility.

    Structure

    1. Gloss Finish (4 layers): Top Protected Film, Polymeric Face Film, Acrylic Adhesive, Release Liner.
    2. Satin Finish (3 layers): Polymeric Face Film, Acrylic Adhesive, Release Liner.

    Specifications

    Size: 32ft/975cm(L) x 1.3ft/40cm (W)

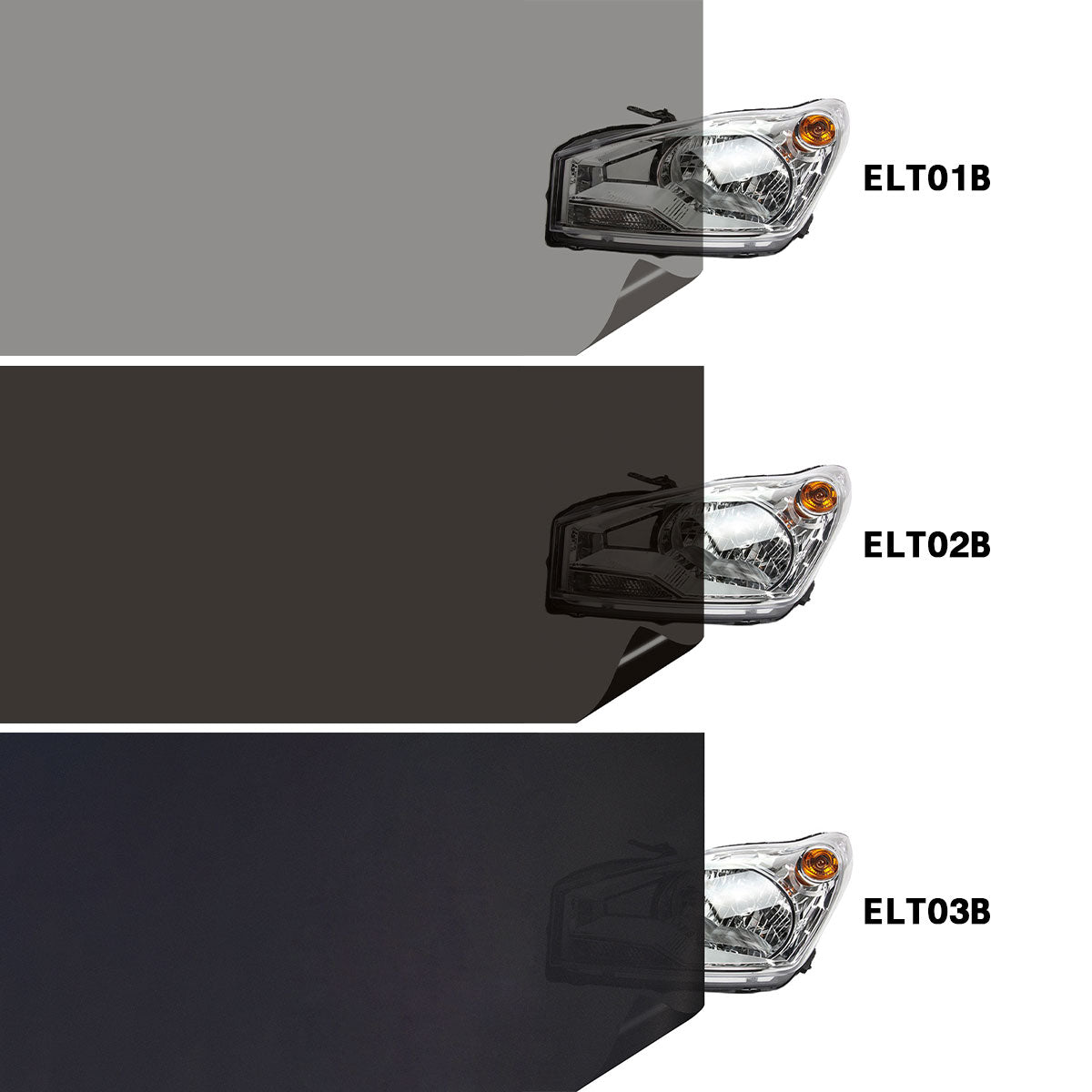

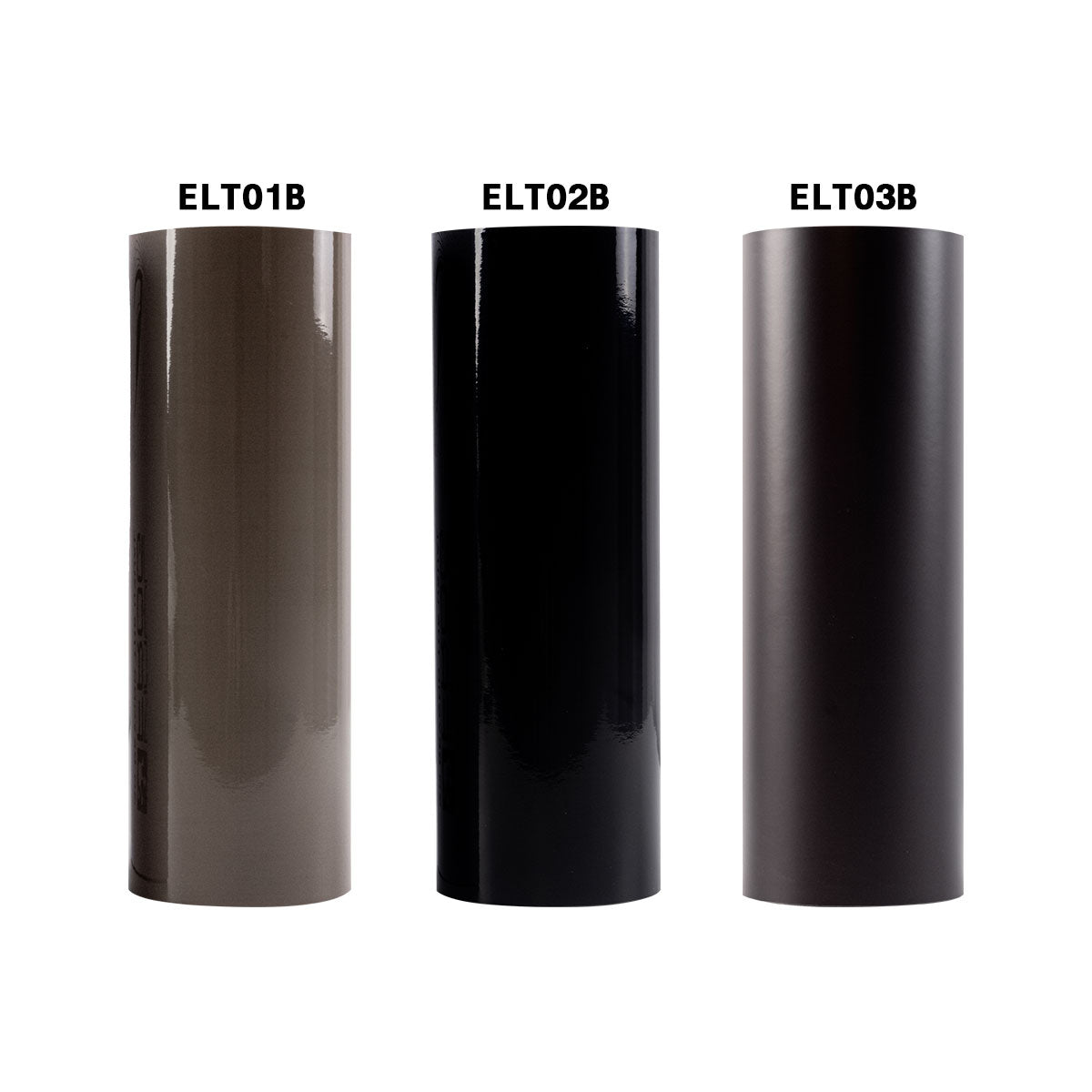

    Set of 3 Colors: Light Black, Deep Black, Satin Black
    Durability: 1 year

    Recommendations

    • Recommended Application Tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, sprayer, towel, and installation liquid
    • Application Method: Standard methods for Car Light Protection Film. Do not overstretch and overheat. Post heating is necessary.
    • Post-heating Temperature: 110°C flat surfaces, 130°C curves and overlaps.
    • Aftercare: PH neutral. Avoid wax or solvents.

    Proper Installation

    If the headlight surface is clean and undamaged before installation, the wrap adheres evenly and removes smoothly.

    Proper Removal Technique

    Using gentle heat (like a heat gun or hairdryer) softens the adhesive, making it easier to peel without pulling or tearing the headlight’s factory coating.

    Warning

    If the headlights are already oxidized, yellowed, or have weak factory coating, peeling the wrap can pull off clear coat or cause flaking.

    Physical Properties

    Classification Unit Spec Remark

    Thickness

    		 Top protected film um 25±5

    PE
    Face Film um 100±5

    /
    Acrylic Adhesive um 20±2 Solvent-based

    Release liner

    		 um 180±2 Paper Liner
    Surface / / Glossy & Matte /
    Width / cm 30/40±0.01% 1.3ft
    Length / m 10±1% 32ft


    Physical Performance

    Features Test Method/Conditions Results
    Gloss (60°) GB 8807 92.3
    VLT / 87%
    Peel Strength
    N/25mm    		 180° 15
    Self-healing Layer Elongation at Break GB/T 1040.1 112
    Face Film Elongation at Break GB/T 1040.1 309.5
    Tear Strength GB/T529 92.7 KN/m
    Tensile Strength GB/T 1040.1 21.6 Mpa
    Holding power(h) paste on steel board, hang on by 25mm*25mm*1kg weight under 29℃ and 55%, GB/T4851-1998 48H No Peeling
    Aging Test  65℃ and 7 days No adhesive residue under 20 times wrapping
    100% Modulus GB/T 1040.1 9.1 Mpa
    Initial Tack(g /25mm) under 24℃ and 26%, GB31125-2014 860
    Release Force (N/25mm) paste on steel board, 90° 26℃ and 60%, GB2792 0.16
    Application Temperature / +20℃ to +30℃
    Service Temperature / -50℃ to +110℃
    Recommended Shelf Life 72°F (22°C) and 50% RH 1 year
    Durability / 1 year
    Time limits Must use it within 3 months after receiving the wrap film 3 months

    Important Notice

    The physical properties of the product detailed in this document are based on tests that we believe to be reliable. They are intended only as a source of information and are given without guarantee. They do not constitute a warranty. Purchasers should independently assess the suitability of this material for their specific use prior to application.

    Warranty, Limited Remedy, and Disclaimer

    Unless an additional warranty is specifically stated on the applicable product packaging or literature, VinylFrog warrants that each product meets the applicable specifications at the time of shipment. We make no other warranties or conditions, express or implied, including but not limited to any implied warranty or condition of merchantability or fitness for a particular purpose, or any implied warranty or condition arising out of a course of dealing, custom, or usage of trade. If the VinylFrog product does not conform to this warranty, then based on our discretion, the sole and exclusive remedy is either the replacement of the product or a refund of the purchase price.

    Limitation of Liability

    Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from its product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.

    Durability

    The durability of the product is based on exposure conditions in South China. Actual performance life will depend on substrate preparation, exposure conditions, and maintenance of the product. For instance, in areas with excessively high temperature, industrial pollution, or high altitude, exterior performance will decrease.
