  • Sku: SUP06

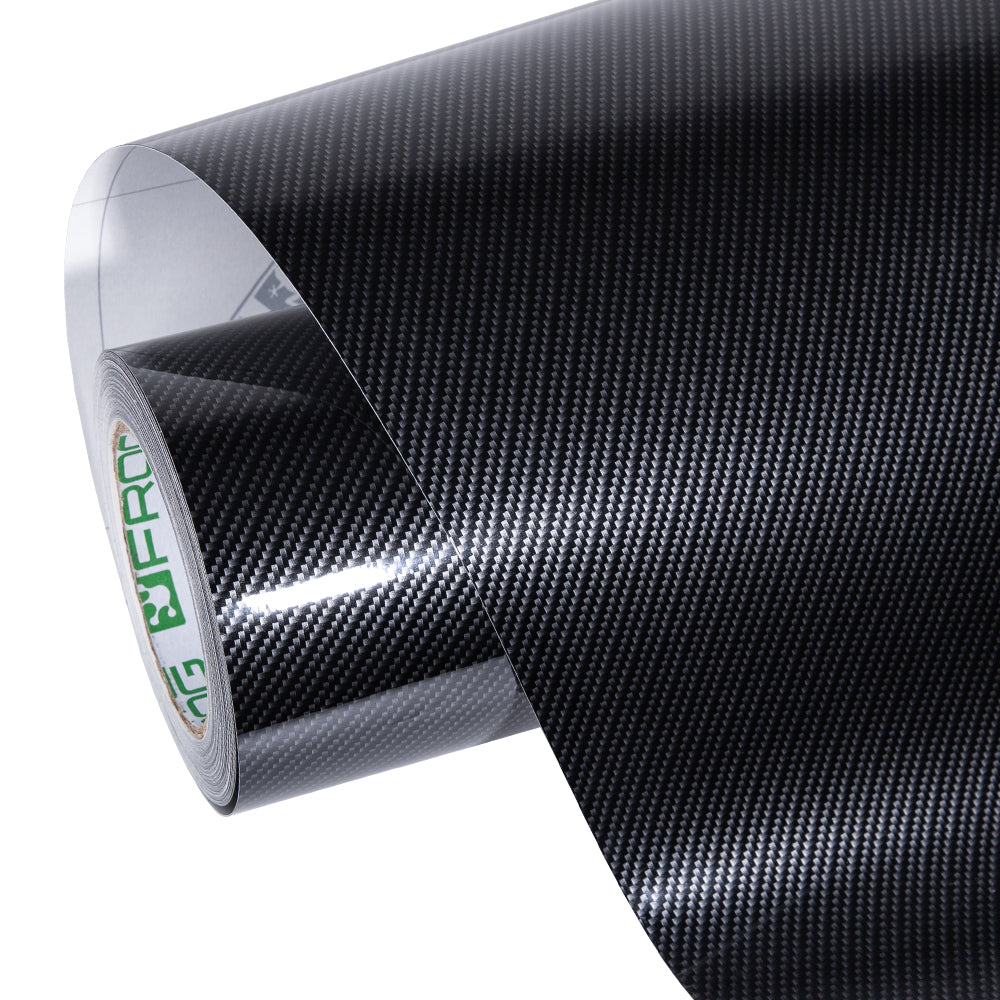

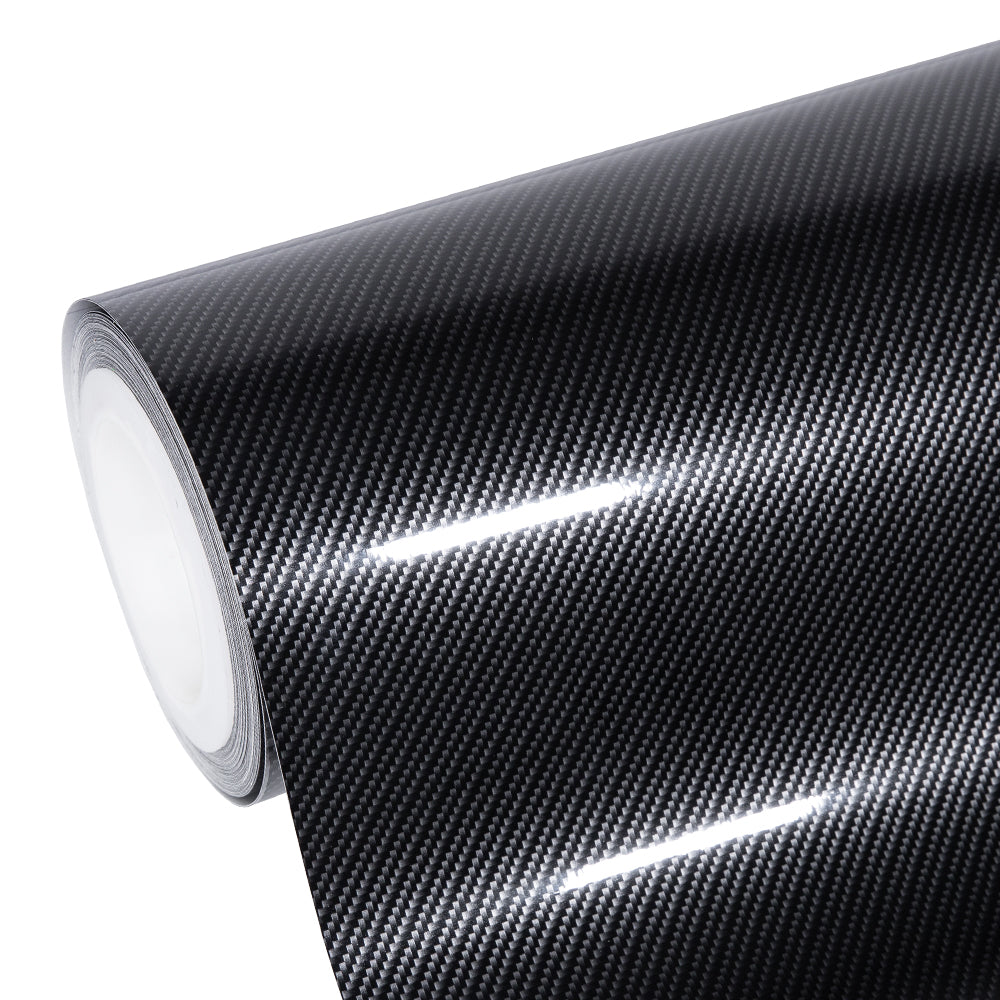

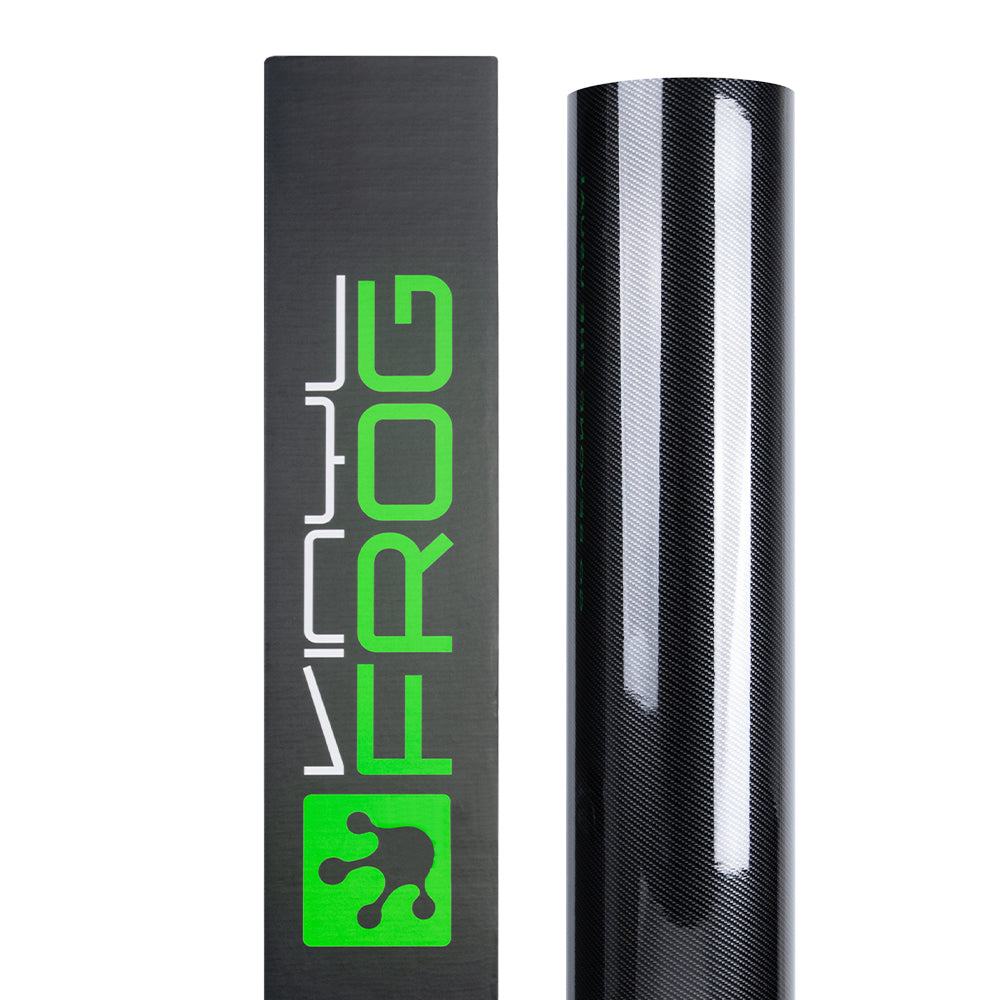

Silver Black Carbon Fiber Vinyl Wrap

£487.00 GBP
 per
In stock!
Size

View full details

Silver Black Carbon Fiber Vinyl Wrap

Description

Features

  • Smooth, high-gloss finish with different intricate weave patterns.
  • High-Grade Polymeric Calendared Vinyl Film
  • Bubble-free Application
  • Lightness and Strength
  • Remove Without Leaving Any Residue
  • Offers premium protection to the underlying surface.
  • Durable and long-lasting.
  • Water and weatherproof.
  • Anti-corrosion, anti-scratch, and anti-stain.
  • Heat and UV resistant.
  • Easily conforms to curves and contours.
  • Easy flawless wrapping.
  • High-quality solvent-based adhesive.

Specifications

  • Color: Silver Black Carbon
  • Roll Sizes: 5ft x 3.28ft, 10ft, 16ft, 33ft, 49ft, and 59ft.

Structure


Material

  • High-Grade Polymeric Calendared Vinyl Film
  • Fashionable, Stunning Color
  • With Air Release Channel
  • Bubble-free Application
  • Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %

Functions

Standard Size & Appearance

Classification Unit Spec Remark
Thickness Top protected film um 36±2% PET
Surface materials um 120±2% High-grade PVC-Polymeric
Glue um 30±2% High-quality Solvent-based
Release liner um 180±2 (paper)
Surface Opaque
Width mm 1520±0. 01% 5ft
Length mm 1800±1% 59ft


Physical properties

Features Test Method Results
Release force
N/25mm
Temperature 25℃ and Humidity 50% 0.23
Initial tack
g/25mm
under 26℃ and 64%, GB31125-2014 850
Peel Strength
N/25mm
25℃and 42%, GB/T2792-1998 7.51
Holding power(h) 25℃ and 50%, GB/T4851-1998 120
Shelf life stored in +15°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place 2 years
Application temperature / +20℃ to +30℃
Service temperature / -50℃ to +110℃
Durability Vertical exposure (Black) 3 years
Durability Vertical exposure (Colors) 2 years
Aging Test 1 7 days under 65°C No adhesive residue with heat
Aging Test 2 10 days under 65°C No adhesive residue without heat
Shrinkage / less than 4%

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.

Recommendations

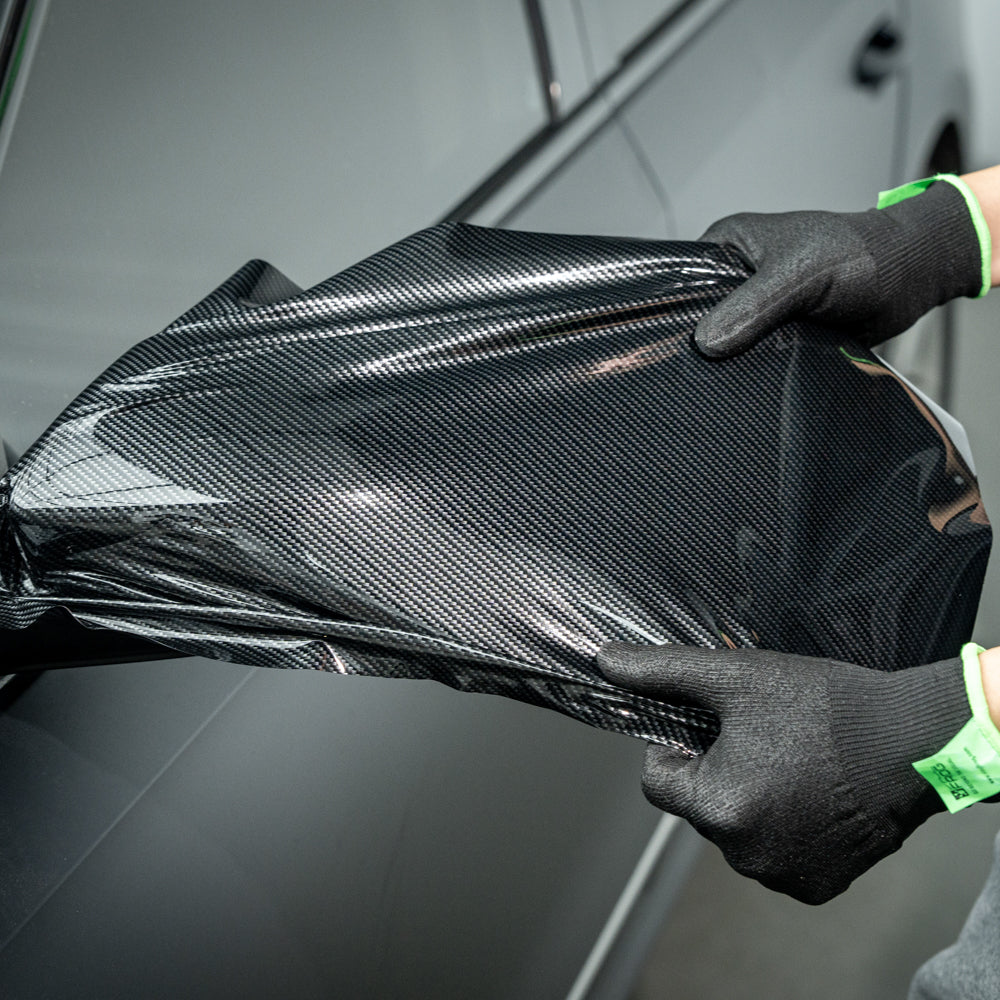

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

Durability

The durability of the product is based on exposure conditions in South China. Actual performance life will depend on substrate preparation, exposure conditions, and maintenance of the product. For instance, in areas with excessively high temperature, industrial pollution, or high altitude, exterior performance will decrease.

Important Notice

The physical properties of the product detailed in this document are based on tests that we believe to be reliable. They are intended only as a source of information and are given without guarantee. They do not constitute a warranty. Purchasers should independently assess the suitability of this material for their specific use prior to application.

Warranty, Limited Remedy, and Disclaimer

Unless an additional warranty is specifically stated on the applicable product packaging or literature, VinylFrog warrants that each product meets the applicable specifications at the time of shipment. We make no other warranties or conditions, express or implied, including but not limited to any implied warranty or condition of merchantability or fitness for a particular purpose, or any implied warranty or condition arising out of a course of dealing, custom, or usage of trade. If the VinylFrog product does not conform to this warranty, then based on our discretion, the sole and exclusive remedy is either the replacement of the product or a refund of the purchase price.

Limitation of Liability

Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from its product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.
